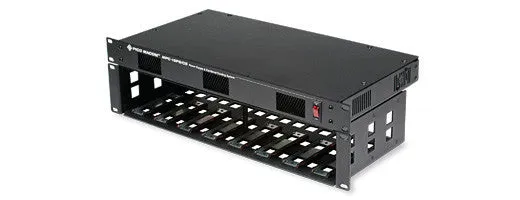

Mini Headend Power Supply and Combiner/Cooling System

Features:

• Switching power supply! 90 to 265Vac for installation flexibility and precise voltage regulation preventing component damage
• 5 to 860MHz Bandwidth high isolation combiner provides spurious carrier rejection minimizing undesired channel interaction thereby reducing picture distortion
• High capacity blowers for superb cooling ensuring system long term reliability
• Reduces dust buildup in rack and on equipment
• High efficiency power supply, with two cooling fans for long life performance
• Auxillary AC outlet for convenience
• UL-approved switching power supply provides flexibility for use in international power system environments.

Specifications:

• Power Supply Input 90-264Vac, 47-63Hz
• Power Supply Output 5Vdc @ 6.5Amps
• 12 Vdc @ 6.0Amps
• Cooling System Rated Fan Voltage 12Vdc
• Fan Speed 2500 rpm
• Max. Air Flow 27.99m3/min.
• Operating Temperature 0° o 50°C
• Dimensions 19½ (L) x 9½ (D) x 1.75½ (H)
• Weight 8.5 lbs.
