Product Details
＋

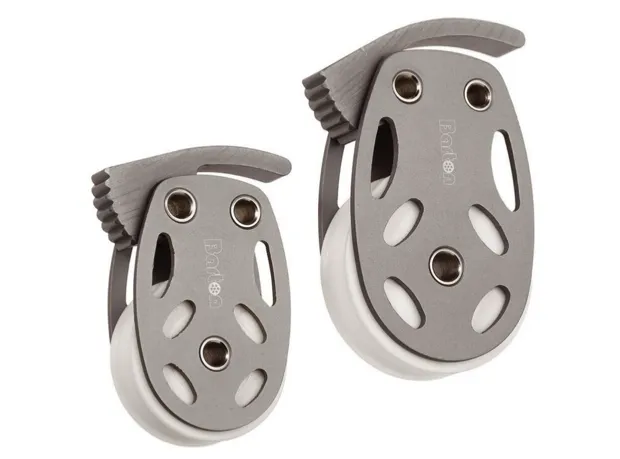

Featuring the same side plate and sheave construction as the high load blocks detailed above.
Key Features
- Hollow stainless rivets allow for through-bolt fastening, giving added strength.
- Through-bolt mounting also means that these blocks can easily be stacked to achieve double block capabilities. Note; stacking blocks will reduce working loads.
- Fastening of the minimum diameter suggested should be used to gain full load capability.
- Ensure that suitable mounting pads are used under deck.
Available in two sizes; specifications as per our high load foot block range. Suitable for a multitude of uses, including locking control lines on headsail furling gear

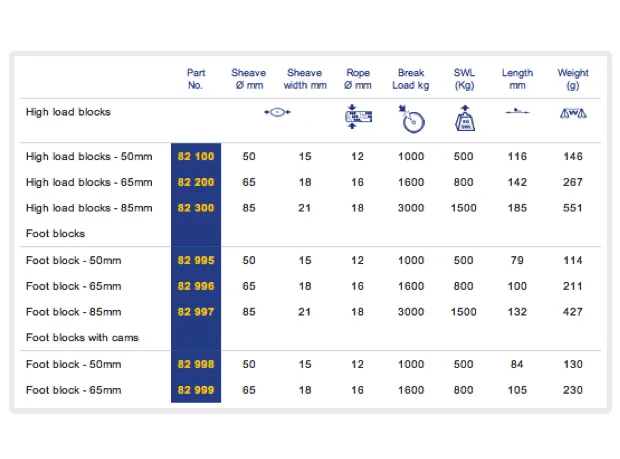

Techy Bits, Dimensions & Weights
- See attached image
- Foot Block with Cam 50mm
- Foot Block with Cam 65mm
