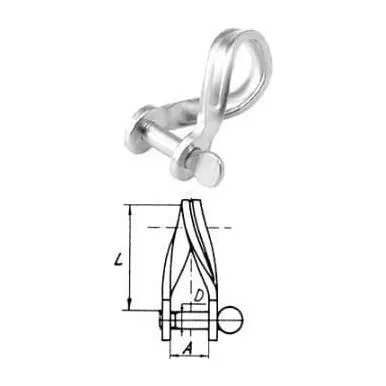

Product Details
＋
- Twisted Stainless Steel Shackle
- With Screwed Collar Pin
- Round Twisted Shackle
- Stainless Steel
- (AISI 316)
- Forged Pin
Sizes and weights given are approx and are intended as a guide only.
Other sizes/styles available together with quantity discounts just email (see the top of the page) for a quote.

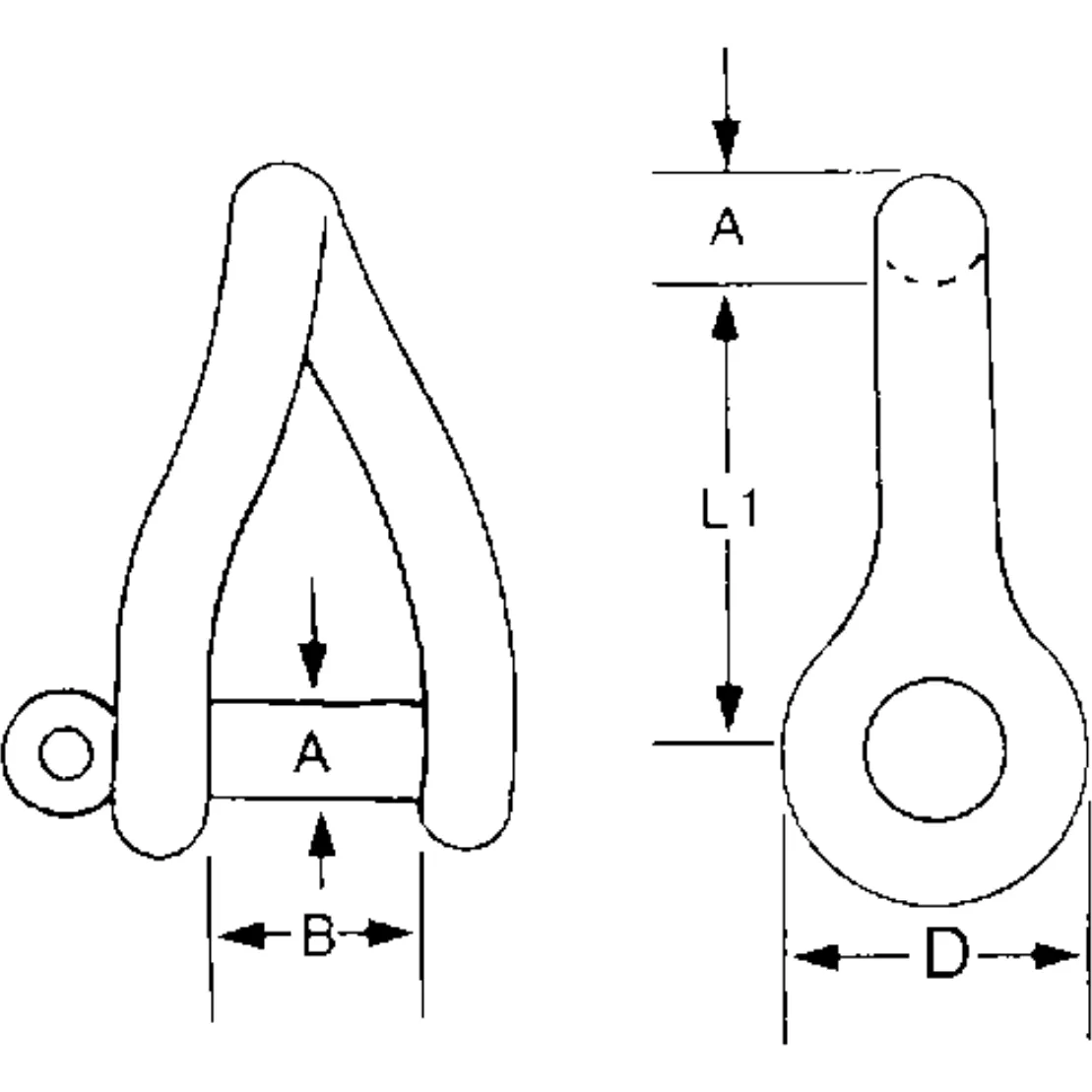

| Part | A mm |
B mm |
D mm |
L1 mm |
Break Load Kg. |
| ED-624104 | 4 | 8 | 8 | 24 | 500 |
| ED-624105 | 5 | 10 | 10 | 30 | 950 |
| ED-624106 | 6 | 12 | 12 | 36 | 1500 |
| ED-624108 | 8 | 16 | 16 | 44 | 2500 |
| ED-624110 | 10 | 20 | 20 | 51 | 4100 |
| ED-624112 | 12 | 24 | 24 | 66 | 5400 |
